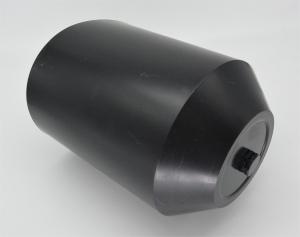

· Insulation waterproof, sealing protection
· Suitable for wire and cable end
· Protection Class : IP67
· Shrink temperature: start at 90℃, and fully recovered at 130℃
· Standard color: Black
Applications

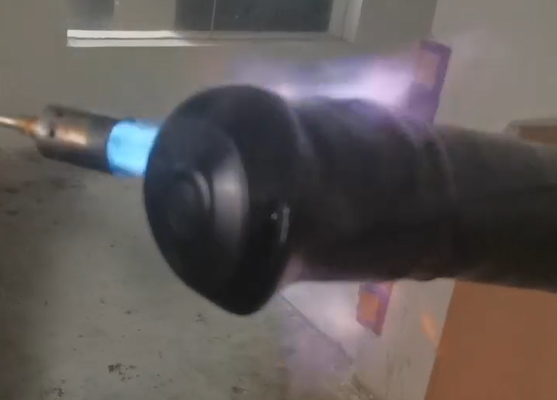

Used for sealing the electric power cable ends and the telecom cable ends during installation or storage,
Protect the cable ends from oxidation, ozone, ultraviolet light and other substances.
It can also be used for the end processing of the street lamp joints
Flame-retardant end cover can be provided according to customer requirements
Valves are provided if required
Dimensions
| No | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Ordinary specification: diameter*high(mm) | Applicable wire outer diameter Φ |
| 1 | 10×30 | 10×40 | 10×50 | 7—9 |
| 2 | 13×30 | 13×40 | 13×80 | 7—12 |
| 3 | 15×40 | 15×50 | 15×100 | 11—13 |
| 4 | 18×40 | 18×50 | 18×100 | 13—15 |
| 5 | 20×40 | 20×60 | 20×100 | 14—18 |
| 6 | 23×40 | 23×50 | 23×60 | 15—20 |
| 7 | 25×40 | 25×60 | 25×65 | 18—22 |
| 8 | 30×50 | 30×70 | 30×100 | 22—27 |
| 9 | 35×50 | 35×70 | 35×100 | 27—30 |
| 10 | 40×60 | 40×70 | 40×120 | 30—35 |
| 11 | 45×60 | 45×70 | 45×120 | 35—40 |
| 12 | 50×70 | 50×80 | 50×120 | 40—45 |
| 13 | 55×70 | 55×80 | 55×120 | 45—50 |
| 14 | 60×80 | 60×90 | | 50—55 |
| 15 | 65×80 | 65×90 | 65×120 | 55—60 |
| 16 | 70×90 | 70×120 | | 60—65 |
| 17 | 75×90 | 75×120 | | 65—70 |
| 18 | 80×100 | 80×120 | | 70—75 |
| 19 | 85×100 | 85×120 | | 75—80 |
| 20 | 90×120 | 90×150 | 140×180 | 80—90 |
| 21 | 95×120 | 95×150 | | 90—95 |
| 22 | 100×130 | 100×160 | 150×180 | 90—95 |
| 23 | 110×130 | 110×160 | 160×180 | 95—110 |
| 24 | 120×130 | 120×160 | | 110—120 |
| 25 | | 130×160 | 130×180 | 120—130 |
| 26 | | 140×160 | 140×180 | 130—140 |
| 27 | | 150×160 | | 140—150 |
| 28 | | 160×160 | | communication cable |
| 29 | Inflatable cap | | | |
| 30 | | | (Patent spring-type) exhaust cap | power cable |
| 31 | | | (Patent bypass valve) exhaust cap | high voltage cable |
Packaging and delivery
Packaging Details According to the cap's size
46cm*46
Port Any ports of China
Customization
Customized logo Customized packaging Graphic customization
MOQ: 5 MOQ: 5 MOQ: 5
Customized production can be carried out according to customer requirements
For more customization details, message supplier
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
